Lightning Stik

DIY NEO LED Pixel Saber Electronics Xenopixel v2 Soundboard 21 Sound Fonts 16gb SD Card DIY Sounds

DIY NEO LED Pixel Saber Electronics Xenopixel v2 Soundboard 21 Sound Fonts 16gb SD Card DIY Sounds

Regular price $80.00 USD
Regular price Sale price $80.00 USD
Sale Sold out
Tax included.
Charging Port

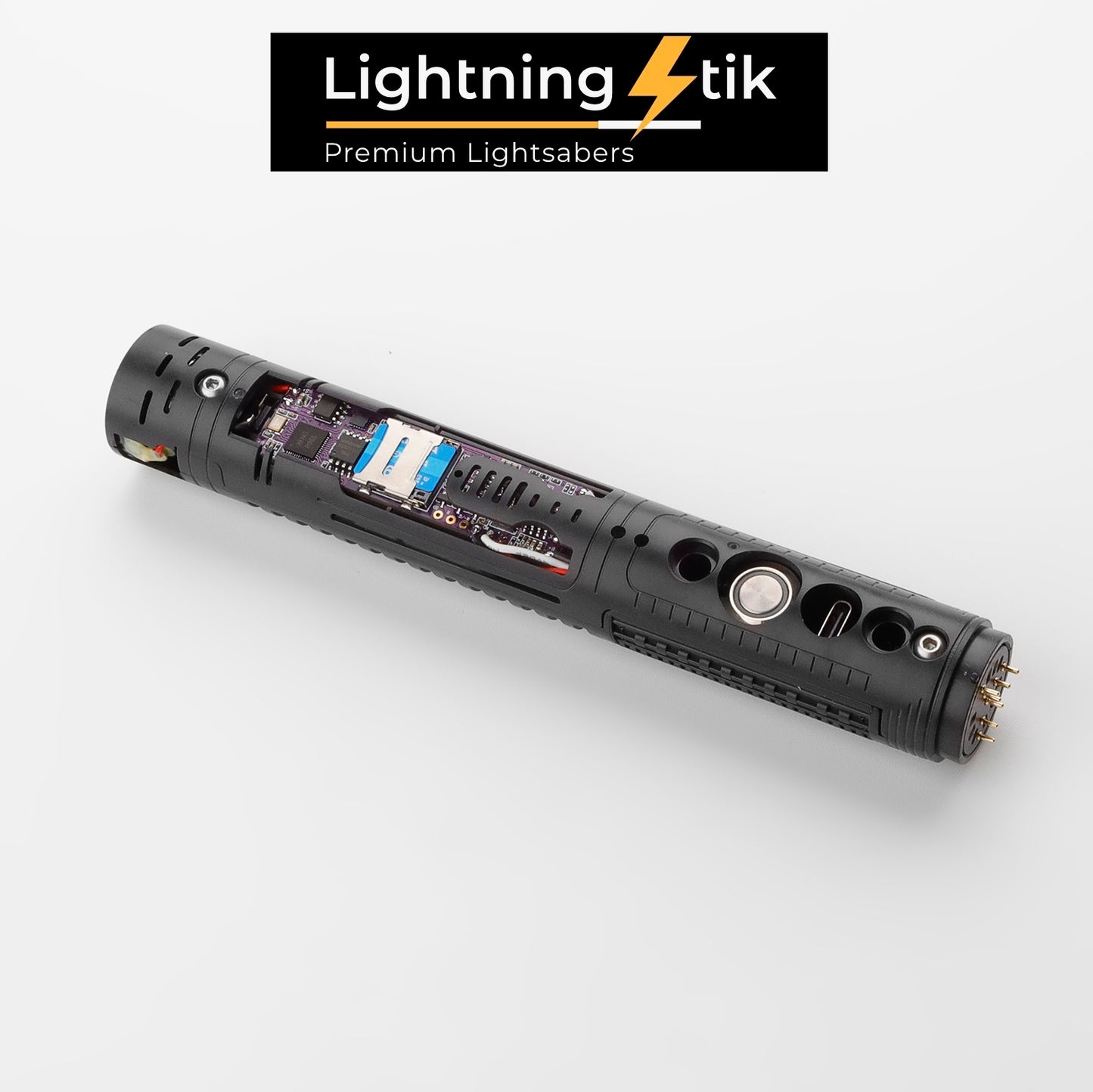

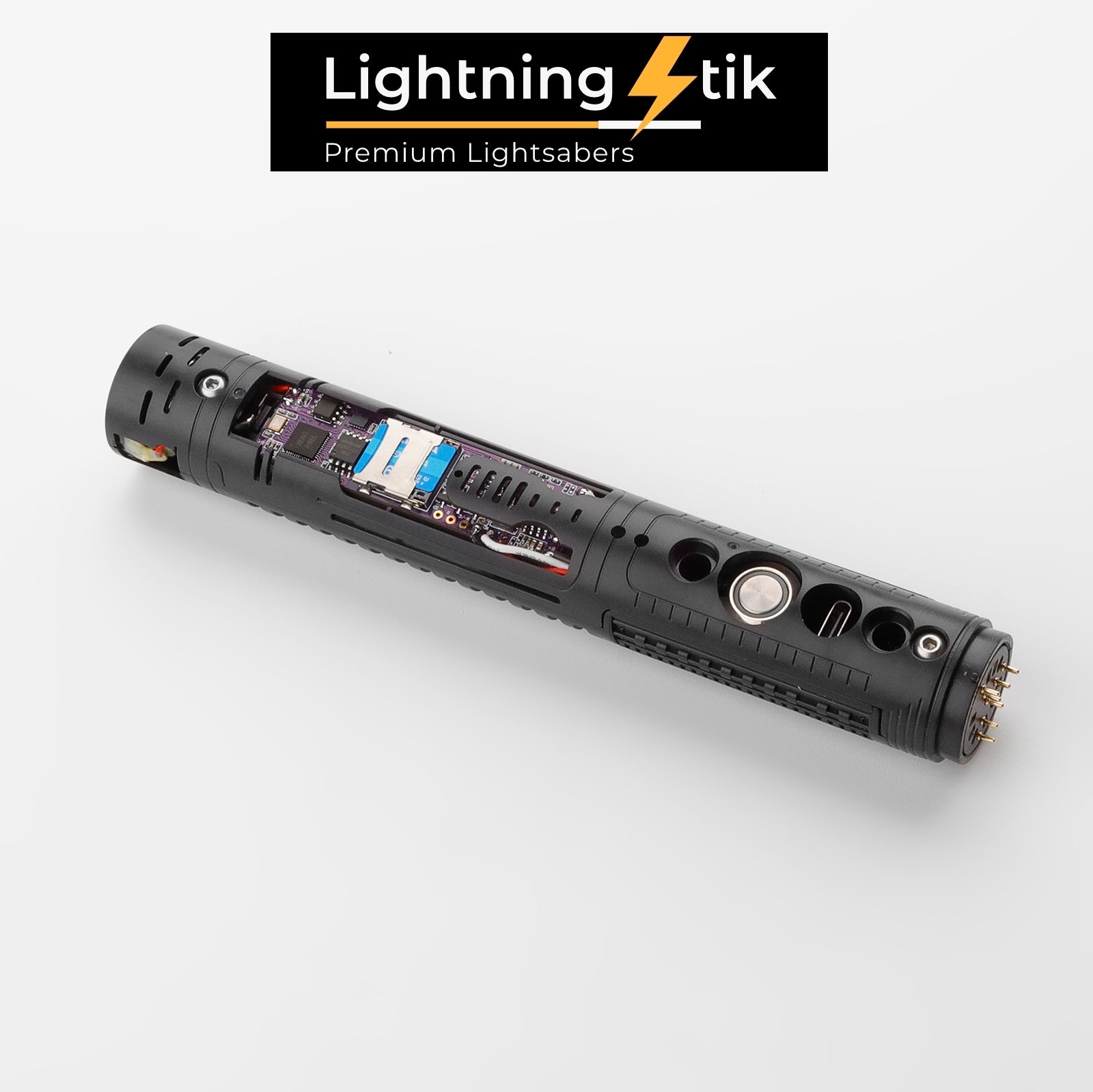

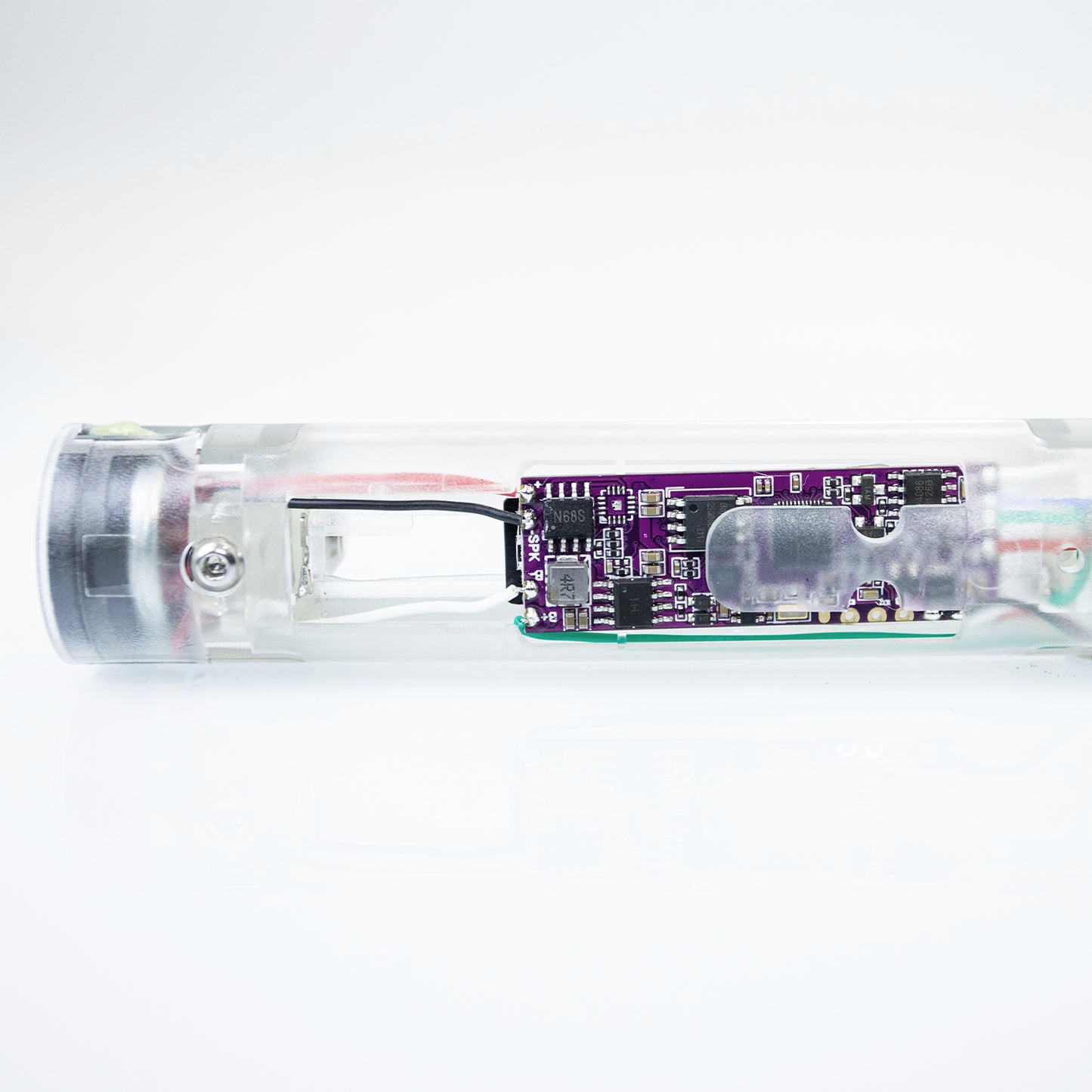

Build your own saber with this Neo Led Pixel electronics soundboard, it comes in a complete kit with pixel blade connector, speakers, control board, rechargeable battery, SD Card and charging cable.

All you need is your own home made handle and a Neo Led Pixel blade, which we also stock here.

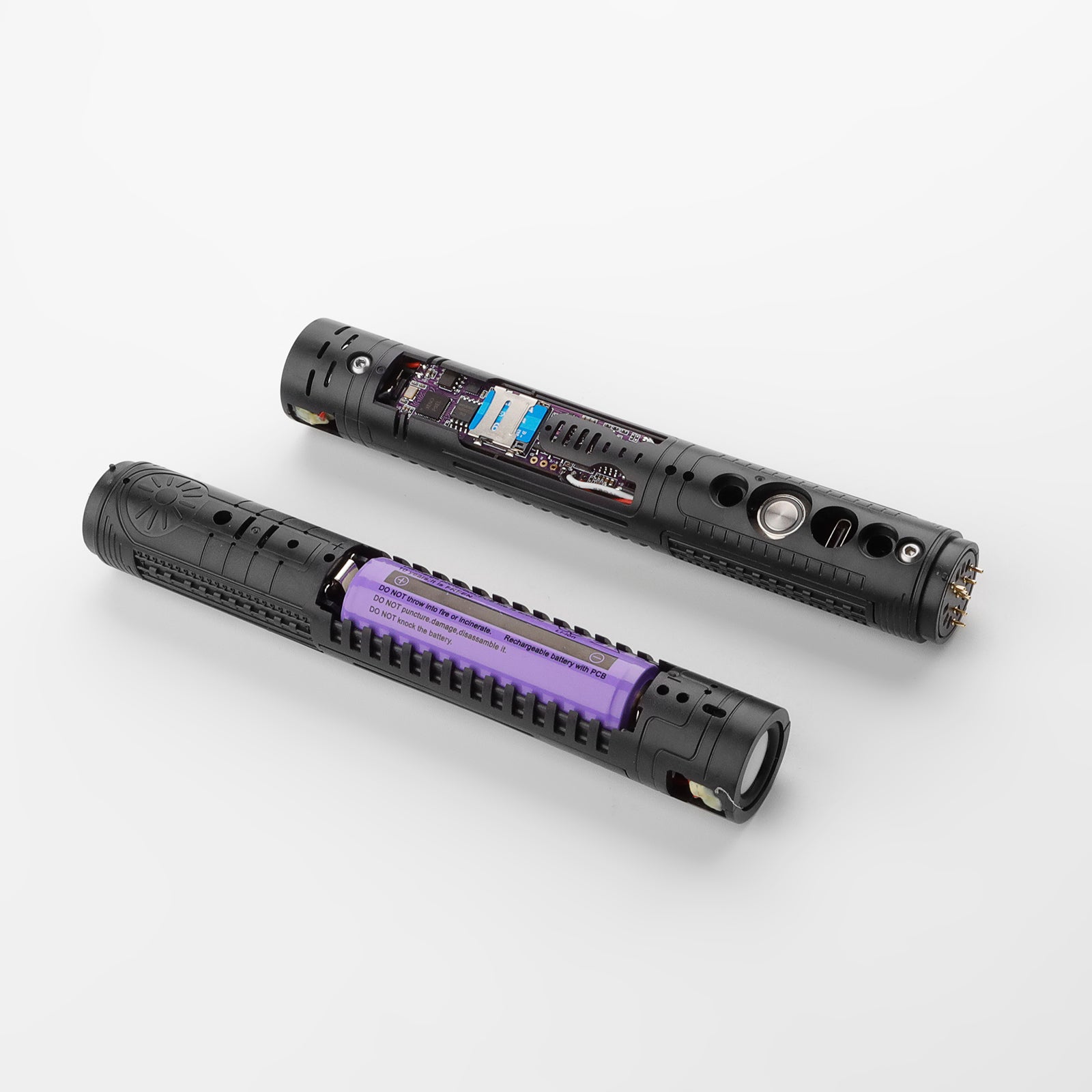

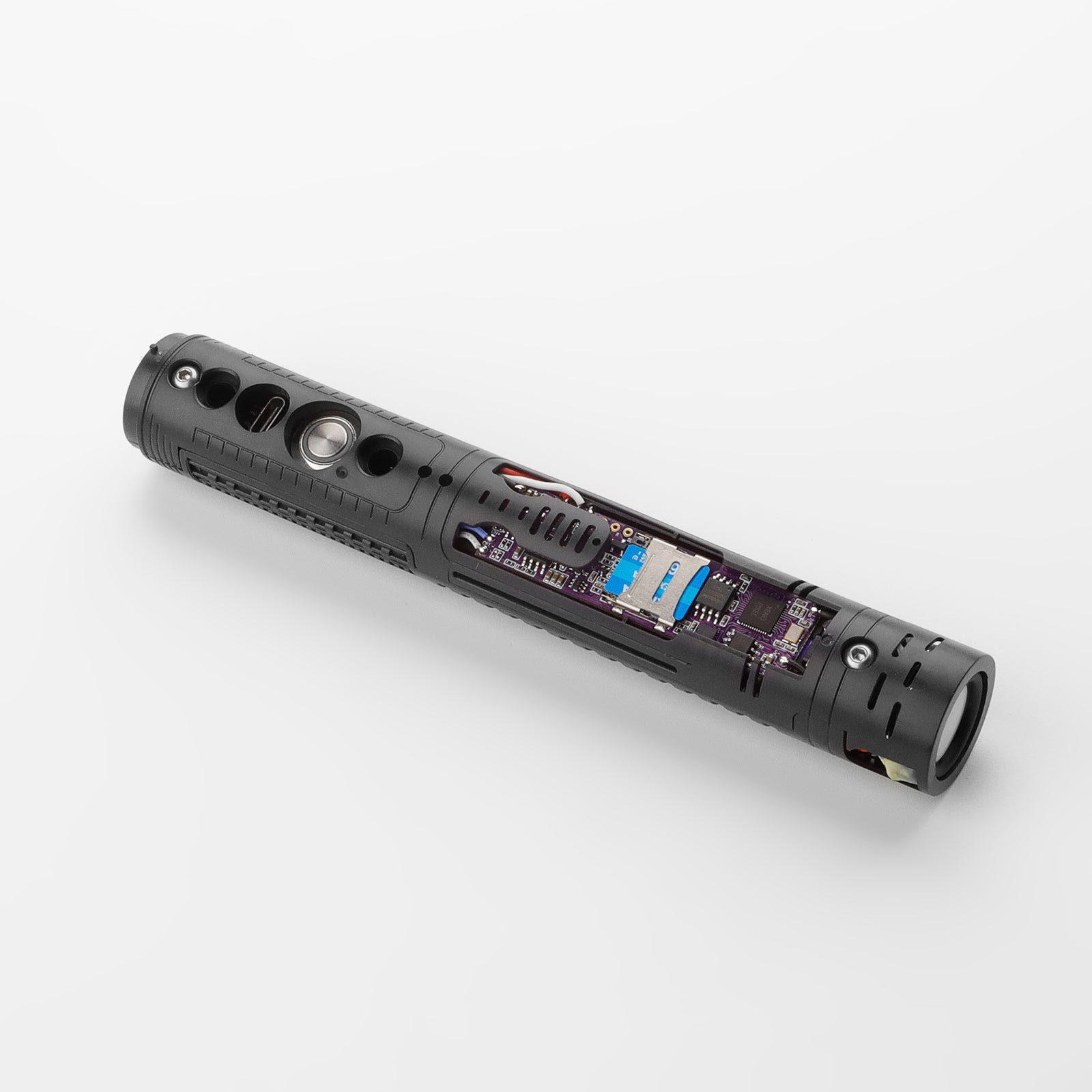

Please choose carefully, there are 2 variants, one with USB C charging port and the other with round charging port. The USB C variant is installed onto a hilt using screws from the back and the Round Port variant is installed using screws from the front. (please ask if unsure).

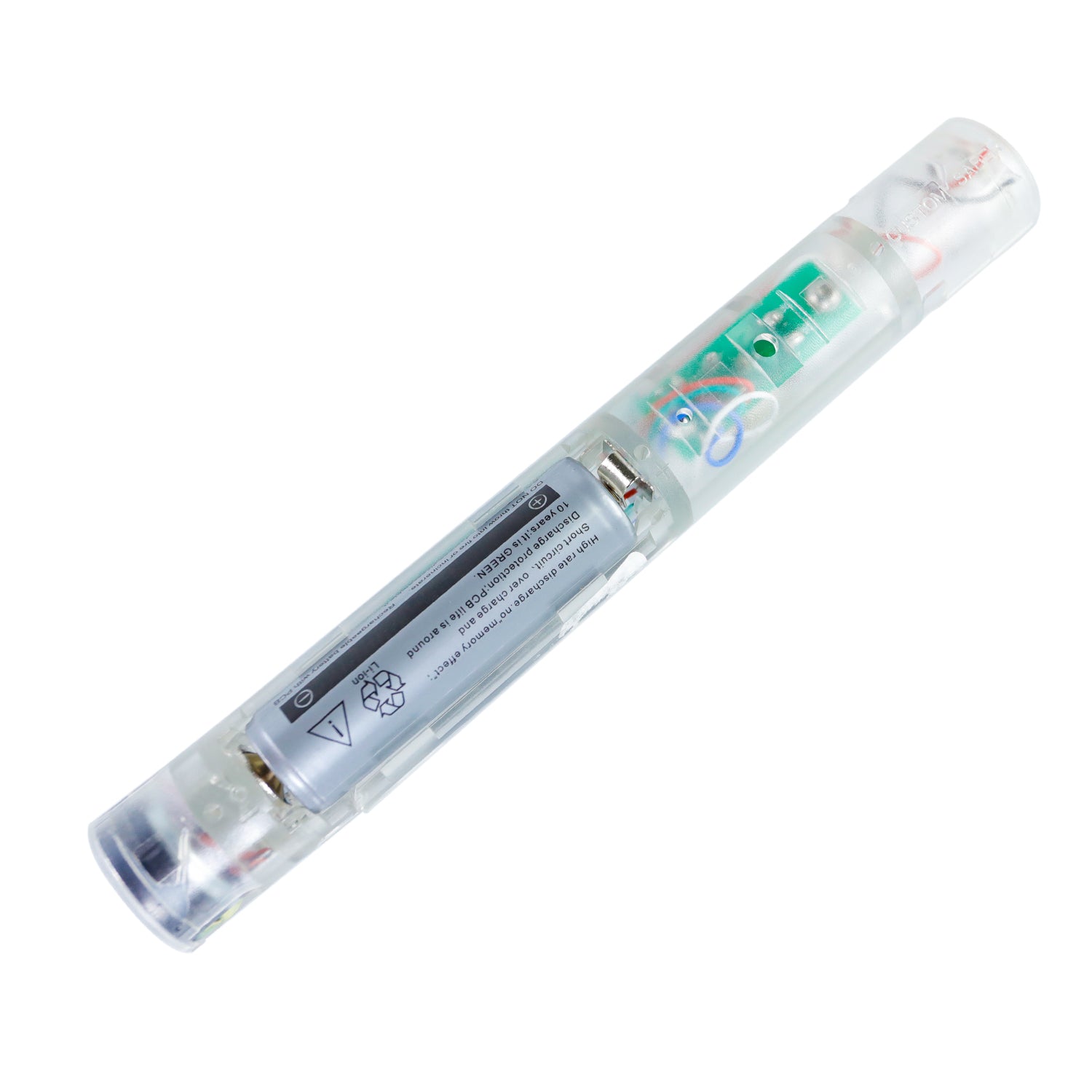

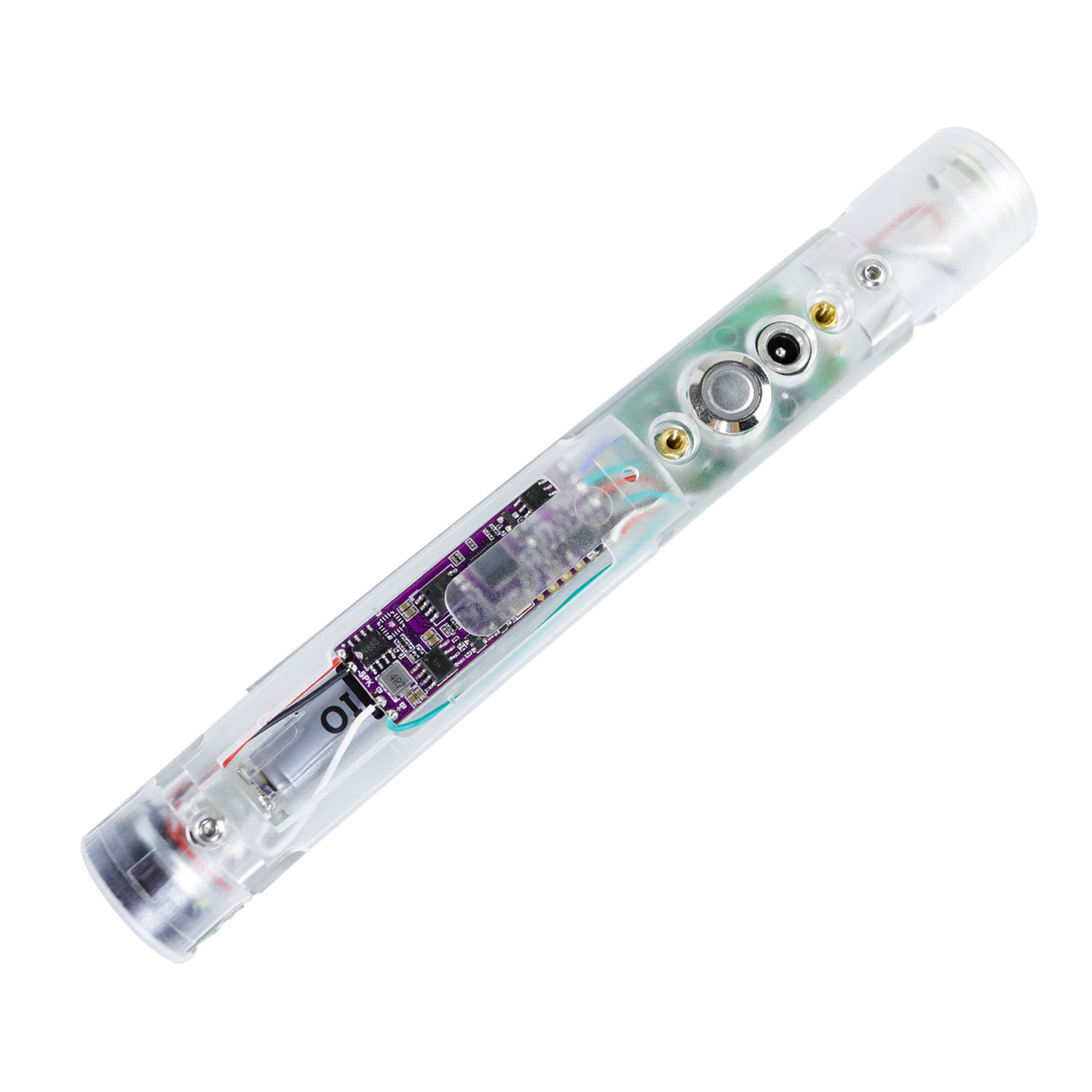

Please note the colour of the chassis could be transparent or black (depending on stock).



DETAILS:

Soundboard: Xenopixel v2

Sound: 21 Fonts of Sound (Kylo Ren, Darksaber, Fallen Order, ESB Graflex, Ben Solo, The Flex, Sith, Rey Skywalker, Leia...). Multiple sets of sound effects plus mute.

Light: infinite light with many light effects.

DIY sound fonts supported, removable 16gb SD Card.

Sound effects: Many sound effects, smooth swing, flash on clash, buzzing, light up and power up/off.

Battery: 18650 battery(3600MAH)

Features: Blaster, Smooth Swing, Lock-up, Heart Beat, Rainbow Blade, Flash on Clash, Drag, Melt and more.

Length of frame: ~19cm.

Diameter of frame: ~2.5cm.

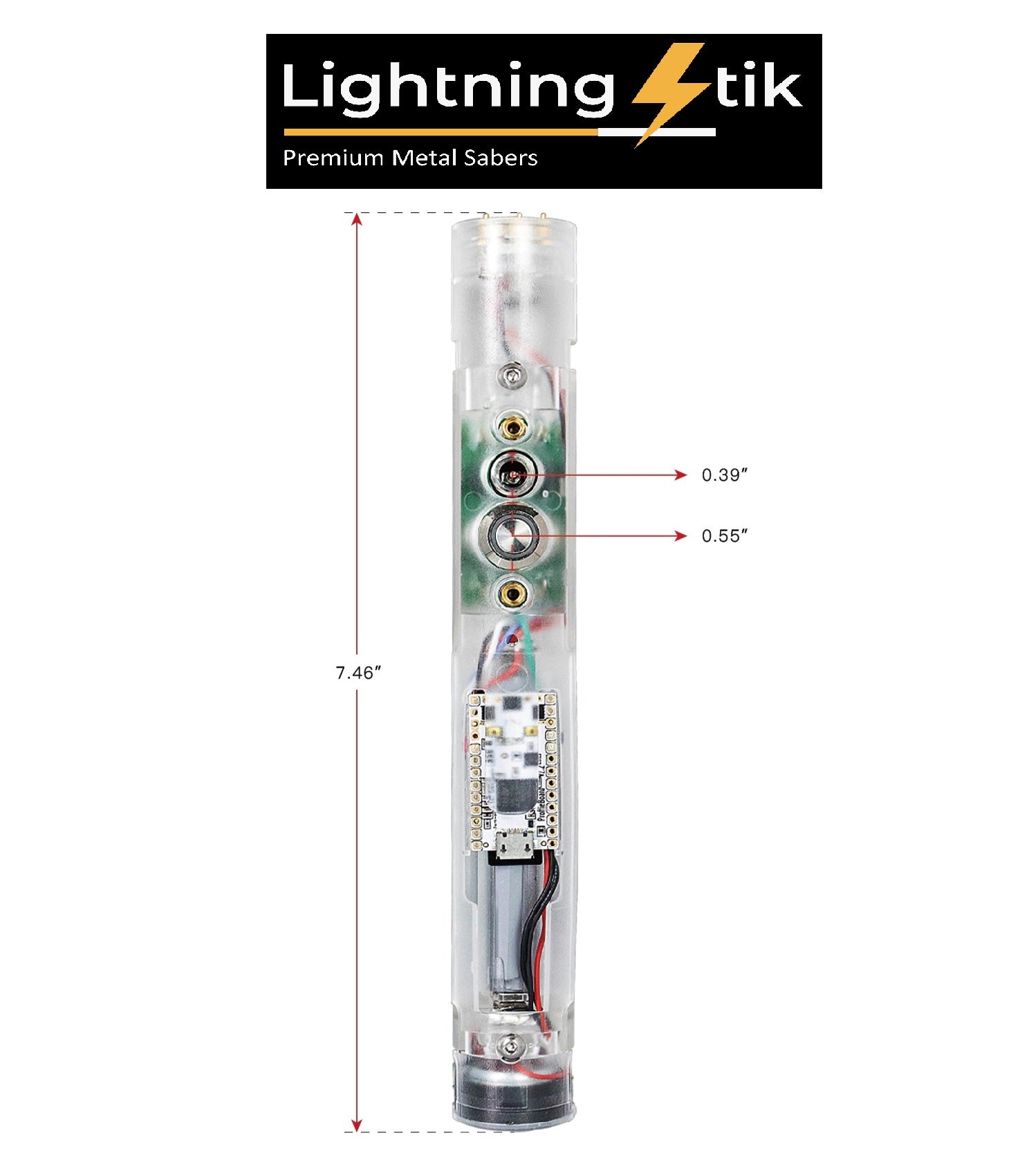

See photo for other measurements.

Firmware updates are available regularly, you need to download the "update.bin" file on your computer.

Five kinds of light effects (pulse, fire blade, stable, unstable, rainbow blade).

Three power-on blade light effects (Blaster blade, Ghost blade, Standard blade).

There are specific motion control modes (turn lightsaber switch, push/pull switch, swing switch).

Activate background music and power up/down with motion gesture.

Warranty: One year

Package includes:

- 1 * complete electronics kit for Neo-Pixel blades with speaker, switch, battery, charging port etc.

- charging cable

- screws and allen key

- SD card reader

- instructions

- Well packaged and protected during shipping.
